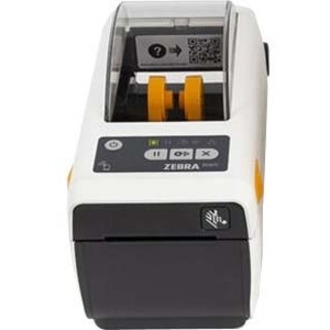

Zebra ZD611T-HC Desktop Thermal Transfer Printer - Monochrome - Label Print - Ethernet - USB - USB Host - Bluetooth - EU, UK
LCD 203 DPI USB/HOST ETH BTLE5
Technical infomations
| Application/Usage | Desktop |
| Barcode Symbology Supported | Codabar |
| Barcode Symbology Supported | Code 128 (A/B/C) |
| Barcode Symbology Supported | Code 39 |
| Barcode Symbology Supported | Code 93 |
| Barcode Symbology Supported | Data Matrix |
| Barcode Symbology Supported | EAN-13 With 2 and 5 Digit Extension |
| Barcode Symbology Supported | EAN-13 |
| Barcode Symbology Supported | EAN-8 With 2 or 5 Digit Extension |
| Barcode Symbology Supported | EAN-8 |
| Barcode Symbology Supported | German Post Code |
| Barcode Symbology Supported | Interleaved 2 of 5 |
| Barcode Symbology Supported | Macro PDF-417 |
| Barcode Symbology Supported | Maxi Code |
| Barcode Symbology Supported | Micro PDF-417 |
| Barcode Symbology Supported | MSI-3 |
| Barcode Symbology Supported | PDF417 |
| Barcode Symbology Supported | Plessey |
| Barcode Symbology Supported | POSTNET |
| Barcode Symbology Supported | RSS-14 |
| Barcode Symbology Supported | UCC/EAN 128 |
| Barcode Symbology Supported | UPC-A with 2 and 5 Add-on |
| Barcode Symbology Supported | UPC-A |
| Barcode Symbology Supported | UPC-E with EAN 2 or 5 Digit Extension |
| Barcode Symbology Supported | UPC-E |
| Bluetooth | Yes |
| Brand Name | Zebra |
| Cables Included | AC |
| Cables Included | USB |
| Connectivity Technology | Wired |
| Depth | 242.9 mm |
| Display Screen Type | LCD |
| Display Screen | Yes |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Ethernet | Yes |
| Features | Dual Wall Frame |
| Features | LCD Display |
| Height | 169.2 mm |
| Language Emulation | EPL2 |
| Language Emulation | EZPL |
| Language Emulation | XML |
| Language Emulation | ZPL II |
| Language Emulation | ZPL |
| Manufacturer Part Number | ZD6AH22-T0EE00EZ |
| Manufacturer Website Address | http://www.zebra.com |
| Manufacturer | Zebra Technologies Corporation |
| Marketing Information | Invest in the best with Zebra's premium 2-inch compact desktop printers, made for healthcare When it comes to healthcare, you need premium, superior printing capabilities that you can rely on for years of outstanding performance. Zebra's new 2-inch ZD611-HC desktop printers have all the features your workflows require, such as next-generation technology, disinfectant-ready and UV-resistant plastics and a medical-grade power supply for added safety. They're easy to setup, operate and maintain thanks to Zebra's Print DNA software suite and the printers' new architecture that provides more processing power and enhanced security. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. Building on the proven ZD600 Series, they're ready to perform flawlessly for years to come.to emerging technology to field-installable options, the ZD611-HC stands apart. Available in direct thermal, thermal transfer and linerless models, the ZD611-HC supports a wide variety of use cases. Purpose-built Healthcare Design Easy to Sanitize and Safe to Power Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD611-HC easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility. Operate with Ease Simple to Setup, Easy to Maintain Backed by Zebra's innovative Print DNA software suite, ZD611-HC printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface requires minimal training, while remote management capabilities and built-in security mean your infrastructure is protected from cyberattacks. Change Media Easily Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT. |
| Maximum Label Length | 39 mm |
| Maximum Label Width | 57.15 mm |
| Maximum Mono Print Speed (ips) | 203 mm/s |
| Maximum Mono Print Speed | 203 mm/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 56 mm (2.20-) |
| Maximum Roll Diameter | 127 mm |
| Media Sensor | Moveable Reflective/Black Mark Sensor |
| Media Sensor | Multi-position Transmissive/Gap Sensor |
| Media Thickness | 190.5 µm |
| Media Type | Continuous Label |
| Media Type | Continuous Receipt |
| Media Type | Die-cut Label |
| Media Type | Fanfold |
| Media Type | Gap |
| Media Type | Label |
| Media Type | Notch |
| Media Type | Roll Fed |
| Media Type | Tag Stock |
| Media Type | Wristband |
| Operating Relative Humidity | 10% - 90% |
| Operating System Supported | Link-OS |
| Operating Temperature | 4.4°C - 40.6°C |
| Optional Connectivity | Serial (RS-232) |
| Optional Connectivity | Wireless LAN |
| Platform Supported | Android |
| Platform Supported | iOS |
| Platform Supported | PC |
| Power Adapter Included | Yes |
| Power Cable Localization | EU |
| Power Cable Localization | UK |
| Power Source | AC Supply |
| Print Color Capability | Monochrome |
| Product Model | ZD611T-HC |
| Product Name | ZD611T-HC Thermal Transfer Printer |
| Product Type | Thermal Transfer Printer |
| Real Time Clock | Yes |
| Recommended Use | Label Print |
| Screen Size | 10.9 cm (4.3-) |
| Standard Memory | 256 MB |
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°C - 60°C |
| USB Host | Yes |
| USB | Yes |
| Weight (Approximate) | 1.63 kg |
| Width | 138.7 mm |
