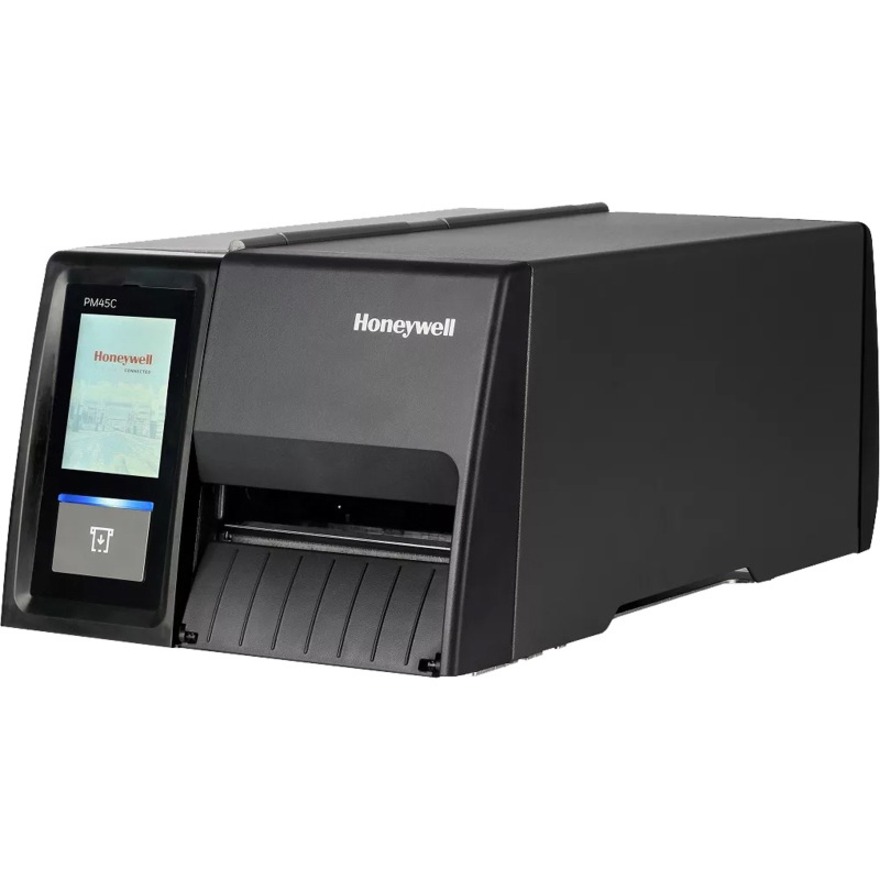

Honeywell PM45C Industrial Thermal Transfer Printer - Monochrome - Label Print - Ethernet - USB - USB Host - Serial
NOPC
Technical infomations
| Application/Usage | Industrial |
| Barcode Symbology Supported | 1D |
| Barcode Symbology Supported | 2D |
| Barcode Symbology Supported | GM1724 |
| Barcode Symbology Supported | HIBCC |
| Barcode Symbology Supported | ISBT-128 |
| Barcode Symbology Supported | POSTNET |
| Barcode Symbology Supported | UCC/EAN 128 Serial Shipping Container |
| Barcode Symbology Supported | UPC/EAN Shipping Container |
| Brand Name | Honeywell |
| Connectivity Technology | Wired |
| Depth | 432 mm |
| Display Screen | Yes |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet | Yes |
| Features | Rugged |
| Height | 181 mm |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Language Emulation | Direct Protocol (DP) |
| Language Emulation | DPL |
| Language Emulation | Fingerprint |
| Language Emulation | IPL |
| Language Emulation | XML |
| Language Emulation | ZPL II |
| Language Emulation | ZSim2 |
| Manufacturer Part Number | PM45CA1010000200 |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Marketing Information | Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management. Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels. As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server. Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media - including ink-in and ink-out ribbons with a 1-inch core size - enhancing the time between media resupplies. The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell's firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs. |
| Maximum Label Width | 114 mm |
| Maximum Mono Print Speed (ips) | 350 mm/s |
| Maximum Mono Print Speed | 350 mm/s |
| Maximum Print Length | 4.80 m |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 107.95 mm (4.25-) |
| Maximum Roll Diameter | 152 mm |
| Media Type | Black Mark |
| Media Type | Continuous Label |
| Media Type | Gap |
| Media Type | Label |
| Media Type | Notch |
| Network Ready | Yes |
| Operating Relative Humidity | 20% - 85% |
| Operating Temperature | 5°C - 40°C |
| Platform Supported | PC |
| Power Source | AC Supply |
| Print Color Capability | Monochrome |
| Product Family | PM45 |
| Product Model | PM45C |
| Product Name | PM45C Thermal Transfer Printer |
| Product Series | PM45 |
| Product Type | Thermal Transfer Printer |
| Recommended Use | Label Print |
| Serial Port | Yes |
| Standard Memory | 256 MB |
| Storage Relative Humidity | 5% - 90% |
| Storage Temperature | -20°C - 70°C |
| USB Host | Yes |
| USB | Yes |
| Weight (Approximate) | 12.60 kg |
| Width | 253 mm |
