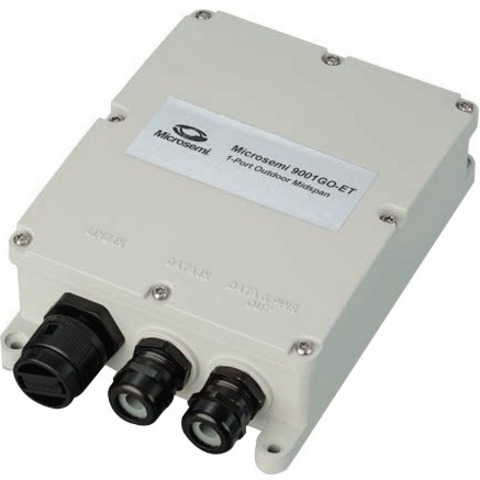

Microchip PD-9001GO-ET PoE Midspan
IN
-
- 0 expected daysASK FOR PRICE
Technical infomations
| Brand Name | Microchip |
| Certifications & Standards |
|
| Compatibility |
|
| Depth | 140 mm |
| Environmentally Friendly | Yes |
| Height | 59.9 mm |
| Input Ports | 1 x 10/100/1000Base-T |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | PD-9001GO-ET/AC |
| Manufacturer Website Address | http://www.microchip.com |
| Manufacturer | Microchip Technology Inc. |
| Marketing Information | Microsemi's PD-9001GO-ET Power over Ethernet (PoE) single-port midspan offers a cost-effective, IEEE 802.3atcompliant solution for outdoor installations, guaranteeing 30 W of power and ensuring safe and reliable operation of any standard PoE data terminal in outdoor environments. It allows wireless LAN access points, security network cameras, and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9001GO-ET also offers surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges. |
| Maximum Frequency | 60 Hz |
| Maximum Input Current | 1 A |
| Maximum Output Power | 30 W |
| Maximum Output Voltage | 54 V DC |
| Minimum Frequency | 50 Hz |
| Output Ports | 1 x 10/100/1000Base-T |
| Product Model | PD-9001GO-ET |
| Product Name | PD-9001GO-ET Midspan |
| Product Type | PoE Injector |
| Protection Type | Surge Protection |
| Weight (Approximate) | 1.40 kg |
| Width | 169.9 mm |
