GTIN Code 4250389276763
GTIN Code 4250389276763

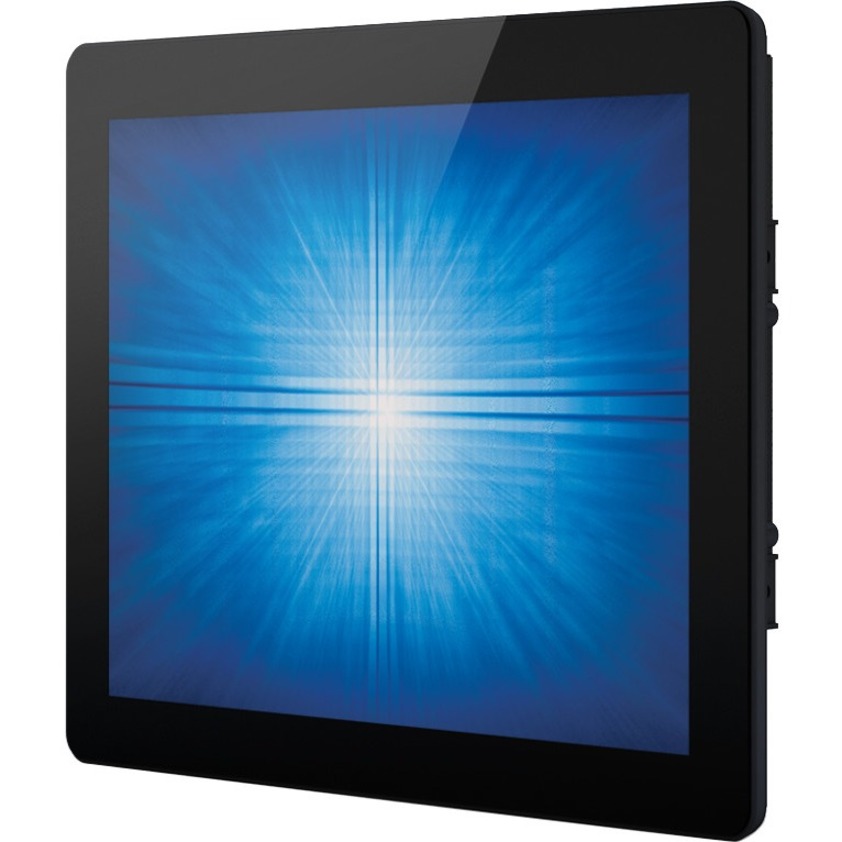

Elo 1590L 38.1 cm (15-) Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms
INTELLIT USBANDRS232 ANTIGLARE I
Technical infomations
| Aspect Ratio | 4:3 |
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness | 300 cd/m² |
| Certifications & Standards |
|
| Colour Supported | 16.2 Million Colours |
| Contrast Ratio | 700:1 |
| Curved Screen | No |
| Depth | 41.9 mm |
| DisplayPort Version | 1.1a |
| DisplayPort | Yes |
| Energy Consumption per Year | 21 kWh |
| Environmental Certification | China RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Anti-glare |
| Features | On-screen Display (OSD) |
| HDMI Version | 1.3 |
| HDMI | Yes |
| Height | 264.4 mm |
| Horizontal Viewing Angle | 160° |
| Input Voltage | 12 V DC |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Manufacturer Part Number | E326738 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Marketing Information | The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
|
| Maximum Resolution | 1024 x 768 |
| Mean Time Between Failures (MTBF) | 5.7 Year |
| Mount Type | Front Mount |
| Mount Type | Rack-mountable |
| Network (RJ-45) | Yes |
| Off-Mode Power Consumption | 500 mW |
| Operating Power Consumption | 14 W |
| Packaged Quantity | 1 |
| Panel Technology | Thin Film Transistor (TFT) |
| Product Color | Black |
| Product Model | 1590L |
| Product Name | 1590L 15- Open Frame Touchscreen (Rev B) |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Response Time | 16 ms |
| Screen Mode | XGA |
| Screen Size Class | 381 mm |
| Screen Surface | Anti-glare |
| Serial Port | Yes |
| Standard Refresh Rate | 75 Hz |
| Standby Power Consumption | 1.50 W |
| TAA Compliant | No |
| Touchscreen Type | IntelliTouch Surface Wave |
| Touchscreen | Yes |
| USB Standard | USB 2.0 |
| USB | Yes |
| Vertical Viewing Angle | 150° |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| VGA | Yes |
| Viewable Screen Size | 38.1 cm (15-) |
| Weight (Approximate) | 2.90 kg |
| Width | 336.3 mm |
