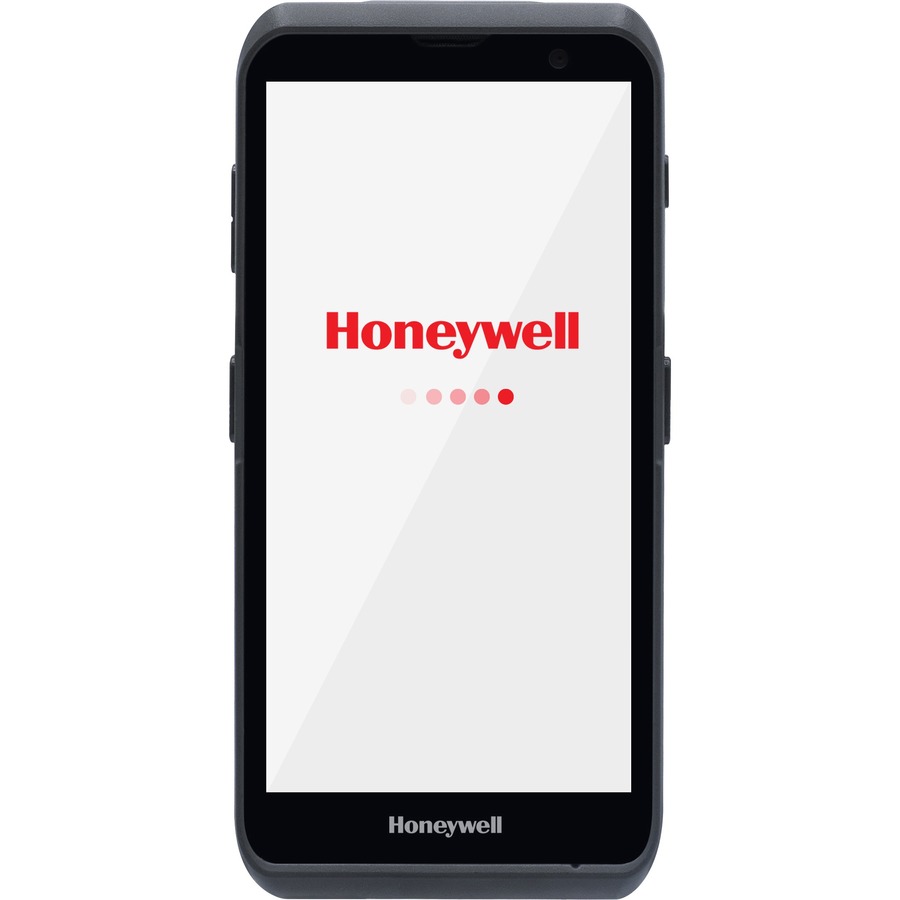

Honeywell ScanPal EDA5S Rugged Handheld Terminal - 1D, 2D - 4G
SCAN IMAGER
Technical infomations
| Application/Usage | Healthcare |
| Application/Usage | Logistics |
| Application/Usage | Retail |
| Application/Usage | Transportation |
| Battery Capacity | 3060 mAh |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Voltage | 3.80 V |
| Bluetooth Standard | Bluetooth 5.1 |
| Bluetooth | Yes |
| Brand Name | Honeywell |
| Cellular Data Connectivity Technology | 4G |
| Connectivity Technology | Wireless |
| Depth | 11.2 mm |
| Display Screen Type | LED |
| Features | Gorilla Glass |
| Flash Memory | 32 GB |
| Form Factor | Phone-size |
| Front Camera Resolution | 5 Megapixel |
| Front Camera | Yes |
| Height | 159 mm |
| Image Sensor Type | Imager |
| Ingress Protection (IP) Rating | IP67 |
| Limited Warranty | 1 Year |
| Manufacturer Part Number | EDA5S-11AE34N21RK |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Marketing Information | The Honeywell ScanPal™ EDA5S is an enterprise-class mobile computer that provides reliable and secure connectivity between frontline workers and backend business systems. It is designed for rugged use in transportation & logistics and healthcare applications. Unlike conventional devices, EDA5S is slimmer, lighter and complete with a sleek and stylish finish. This makes it more suitable for customerfacing luxury and fashion retail markets. The ScanPal EDA5S is Honeywell's new ScanPal series mobile computer equipped with Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication. A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day. The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication. The EDA5S incorporates the all-new and powerful Honeywell S0703 scan engine which enables accurate and fast reading even of damaged or incomplete barcodes. Outfitted with a rugged housing and IP67 rated sealing, the EDA5S can operate under rough usage and demanding environmental conditions. A 3060mAh battery provides 8 hours of power without interruption. The battery is also easily removable and supports quick charge 3.0. The EDA5S (WWAN version) supports one nano SIM and one eSIM simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards. The EDA5S is built on Android 11 and upgradable to Android 13, reducing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs. |
| Maximum Battery Recharge Time | 3.50 Hour |
| Maximum Battery Run Time | 8 Hour |
| Memory Card Supported | microSD |
| Multi-touch Screen | Yes |
| Near Field Communication (NFC) | Yes |
| Number of Keys | 5 |
| Operating System | Android 11 |
| Package Contents |
|
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Qualcomm |
| Processor Model | SM6115 |
| Processor Speed | 2 GHz |
| Processor Type | Snapdragon |
| Product Family | ScanPal |
| Product Line | ScanPal |
| Product Model | EDA5S |
| Product Name | ScanPal EDA5S Handheld Terminal |
| Product Type | Handheld Terminal |
| Rear Camera Resolution | 13 Megapixel |
| Rear Camera | Yes |
| Removable Battery | Yes |
| Rugged | Yes |
| Scan Engine Model | S0703 |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Screen Mode | HD |
| Screen Resolution | 1440 x 720 |
| Screen Size | 14 cm (5.5-) |
| Standard Memory | 3 GB |
| Touchscreen | Yes |
| USB Type-C | Yes |
| USB | Yes |
| Weight (Approximate) | 218 g |
| Width | 75 mm |
| Wireless LAN Standard | IEEE 802.11ac |
| Wireless LAN | Yes |
