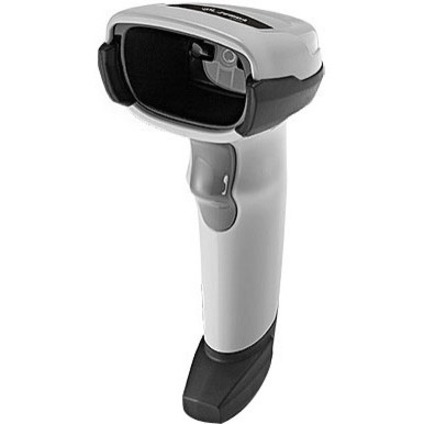

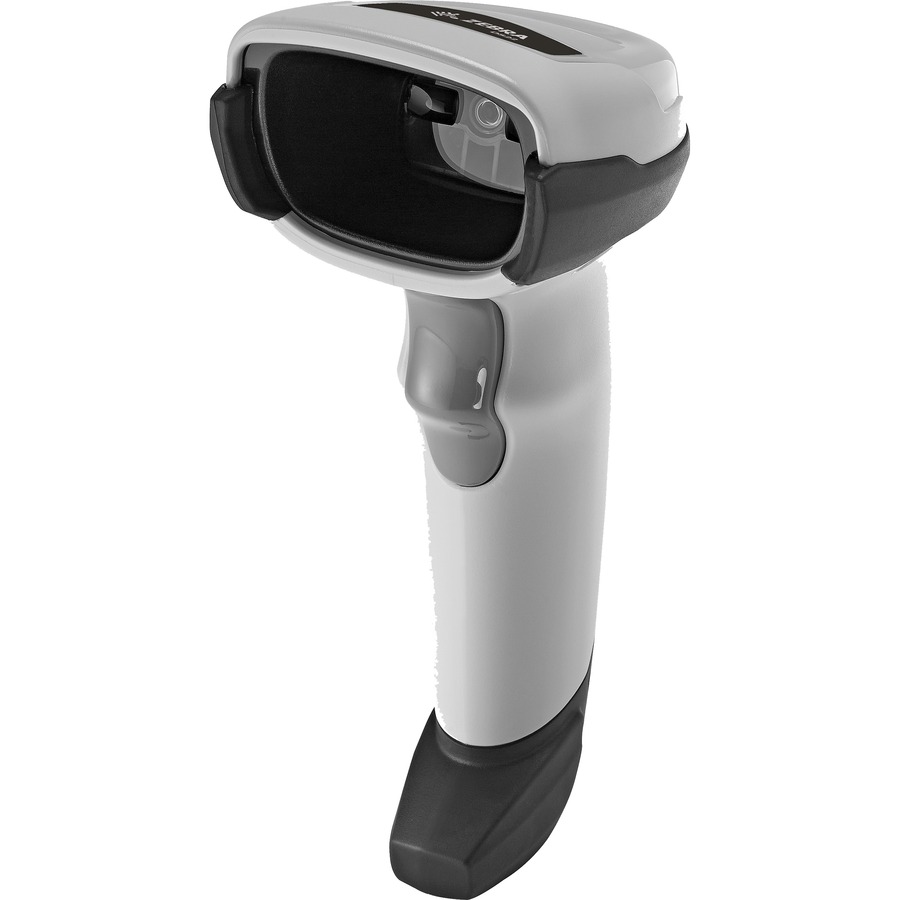

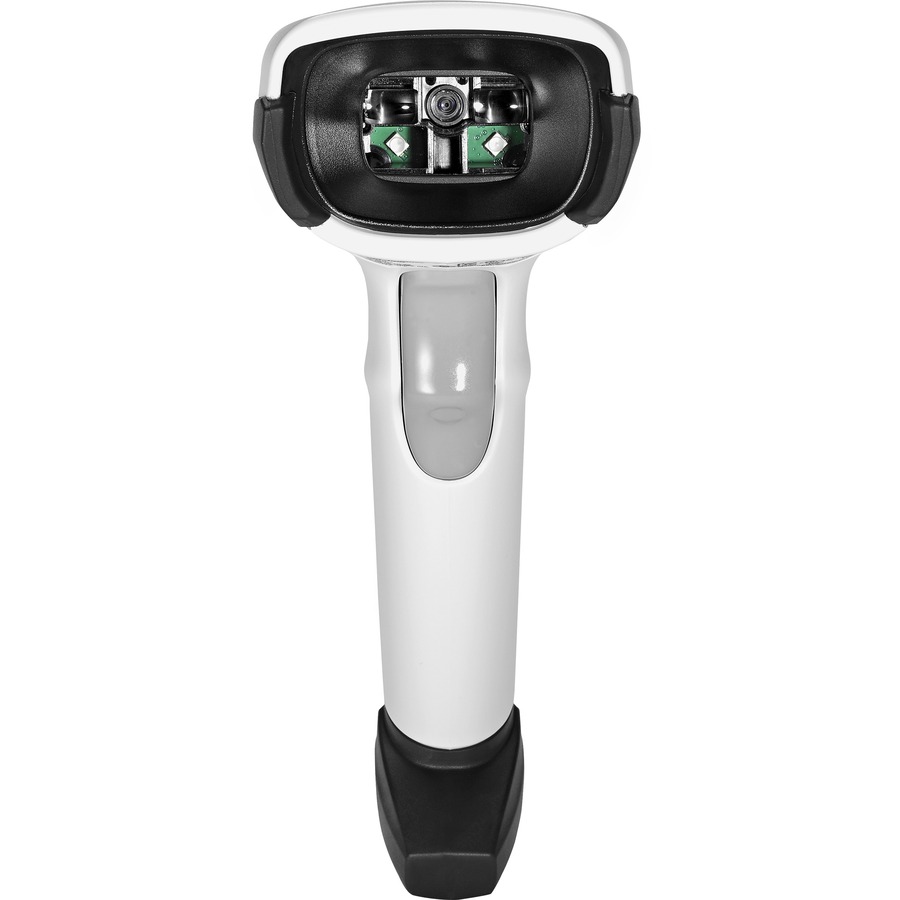

Zebra DS2208-SR Retail, Hospitality, Transportation, Logistics, Light/Clean Manufacturing, Government, Industrial Handheld Barcode Scanner Kit - Cable Connectivity - Nova White - USB Cable Included
WITH STAND
Technical infomations
Application/Usage | Government |
Application/Usage | Hospitality |
Application/Usage | Industrial |
Application/Usage | Light/Clean Manufacturing |
Application/Usage | Logistics |
Application/Usage | Retail |
Application/Usage | Transportation |
Barcode Symbology Supported | 1D:
|
Brand Name | Zebra |
Cable Type Included | USB |
Connectivity Technology | Cable |
Depth | 99.1 mm |
Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Field of View (Horizontal) | 33° |
Field of View (Vertical) | 25° |
Form Factor | Handheld |
Height | 165.1 mm |
Host Interface | USB |
Image Sensor Type | Imager |
Ingress Protection (IP) Rating | IP42 |
Limited Warranty | 3 Year |
Manufacturer Part Number | DS2208-SR6U2100SGW |
Manufacturer Website Address | http://www.zebra.com |
Manufacturer | Zebra Technologies Corporation |
Marketing Information | Affordability and simplicity delivered Easy to Deploy Pre-Configured and Ready to Use, Right Out of the Box Since the default settings are optimized for the majority of scanning applications, you can use the DS2200 Series imager the moment you take it out of the box - no configuration required.. Auto-Host Detect Cables Just plug the DS2200 Series into your Point of Sale (POS) and the auto-host detect cables will automatically identify the interface and connect the imager, simplifying and reducing setup time. Easy Integration with a Tablet-Based POS The DS2200 Series offers all the features you need to add high-quality scanning to your tablet-based POS. The Micro USB cable provides a low-cost charging alternative to a cradle. And with our simplified app development tools, you can easily configure and update the DS2200 Series right from the tablet. Deploy Anywhere in the World With over 90 international keyboards, the DS2200 Series is easy to deploy all around the world. Easily Customize Settings with 123Scan This complementary software tool is so intuitive that even a first time user can easily set up a DS2200 Series imager. The wizard-driven interface makes it easy to embed all settings into a single programming barcode, enabling you to configure your devices with a single scan. Backwards Compatible with Zebra LS2208 Series Cables If you use Zebra's 1D LS2208 scanners today, you can use the same universal cables with the DS2200 Series, allowing you to leverage your existing accessory investment to minimize the cost of upgrading to a 1D/2D imager. |
Maximum Ambient Light | 107600 lux |
Maximum Element Resolution (Code 39) | 0.13 mm |
Maximum Element Resolution (DataMatrix) | 0.25 mm |
Maximum Element Resolution (PDF417) | 0.17 mm |
Minimum Print Contrast | 25% |
Motion Tolerance | 127 mm/s |
Packaged Quantity | 1 |
Product Color | Nova White |
Product Family | DS2200 |
Product Model | DS2208-SR |
Product Name | DS2208-SR Handheld Barcode Scanner with Stand |
Product Series | DS2200 |
Product Type | Barcode Scanner Kit |
Reading Angle (Pitch) | 65° |
Reading Angle (Roll) | 360° |
Reading Angle (Skew) | 65° |
Scan Pattern | Omni-directional |
Scan Rate | 30 scan/s |
Scanner Range | Standard Range |
Scanning Capability | 1D |
Scanning Capability | 2D |
Scanning Distance | 368.30 mm |
Stand Included | Yes |
Weight (Approximate) | 161.6 g |
Width | 66 mm |
